LV-210 Premade Pouch Weighing and Filling Machine

The LV-210 is a premade-pouch machine in the LINEVO catalog. It picks up a pouch, opens it, fills it, seals it and passes on the finished pack. The figures below come from the catalog. Use them to shortlist; your quote confirms them for your product and pouch.

Model and Configuration

The catalog describes the LV-210 as a premade pouch weighing and filling machine for coffee beans and other suitable solid products.

The weigher model and head count aren't stated, so don't read them off the photograph. The weighing and filling arrangement is set per project, from your product and quoted scope.

Suitable Products and Pouches

The catalog lists this platform for solid, granular and piece products: snacks, dried fruit, nuts, gummy candies, biscuits, beans, rice, grains, salt, sugar, frozen food and pet food. The source list ends with "etc.". Pouch width is listed at 90 to 210 mm and length at 110 to 330 mm.

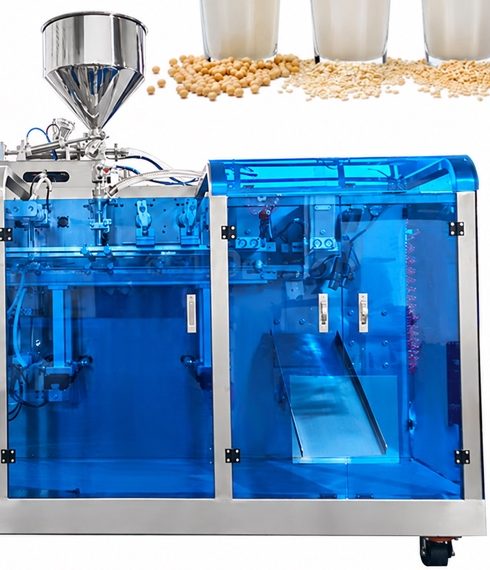

The catalog also has separate listings of this platform for different applications, with the same figures as the base record. It's one machine shown in different setups. The photos below come from those listings.

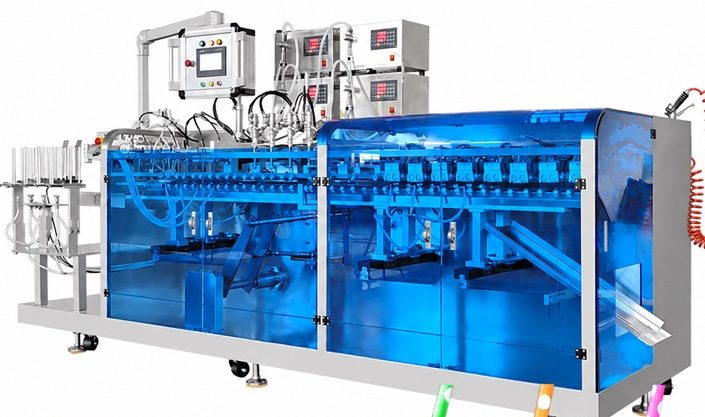

The juice and milk listings name liquids and pastes, but no viscosity range or liquid dosing equipment is published. For liquids and pastes, see liquid pouch filling. For pouch formats, see stand-up pouches. Powder is handled differently; powder pouch filling explains how.

Catalog Specifications and Conditions

LINEVO catalog listing. Confirm every figure in your quotation.

LV-210 Premade Pouch Weighing and Filling Machine

A premade-pouch configuration for coffee beans and other suitable solid products. The process retrieves and opens a pouch, measures and fills product, seals the pouch and discharges the finished pack.

Products:

granule, pieces

Applications:

Coffee beans and other suitable solid products.

Pouch formats:

premade pouch, zipper pouch (zipper handling is review required)

Specification	Value	Condition
Pouch width	90–210 mm	Published catalog value; confirm against the quoted configuration and representative samples.
Pouch length	110–330 mm	Published catalog value; confirm against the quoted configuration and representative samples.
Listed packing speed	20–70 bags/min	Catalog range; no product-specific trial conditions are published. Confirm output with the intended pouch and product.
Listed power	3.5 kW	Published catalog value; confirm against the quoted configuration and representative samples.
Listed supply	220 V, 50/60 Hz	Published catalog value; confirm against the quoted configuration and representative samples.
Listed dimensions	2150 × 1350 × 1300 mm	Catalog machine dimensions; confirm the complete line layout and access space.

Configuration scope

• Premade pouch retrieval, opening and sealing (Included)
• Weighing and filling arrangement (Review required)
• Zipper handling, feeding and product change parts (Review required)

Coffee beans are the only product named. Speed is a catalog range with no trial conditions, and no accuracy figure, price or certification is published.

View on linevopack.com

The 20 to 70 bags per minute is a catalog range. Real output depends on the product, the pouch and the fill weight, so tell us the speed you need on finished, acceptable packs. Compare it with another supplier's figure only if both state their conditions. No accuracy figure, price or certification is published for this model; the filling accuracy guide shows how to set a tolerance and measurement method.

Working Process

The catalog publishes three steps:

1. Automatic bag retrieval.
2. Automatically open the bag, including the zipper.
3. Output the finished product.

The scope also includes filling and sealing. The filling method, any inspection step and the sealing method aren't described, so ask for them in the quote if they matter to your pack.

Options and Exclusions

Use this as a checklist for your quote.

Ask which feeding equipment is in the quote and which change parts come with it. A new pouch size can need new grippers or settings, and a similar look doesn't make parts interchangeable.

Layout and Utilities

The dimensions are for the machine alone. Check the full line layout and access space, including any feeder, conveyor or platform outside that footprint. A weigher on top, as in the photo, may affect ceiling height, and the catalog gives no height for the complete line. Confirm the supply matches your site, and ask whether compressed air or another utility applies, since none is listed.

Trial and Acceptance

No trial data is published for the LV-210. Decide before ordering what you'll measure, such as fill weight, seal quality and speed on acceptable packs, and under what conditions. The filling accuracy guide lists what to specify.

To have your product and pouch reviewed first, see sample testing. Ask the team whether this model is available for testing. A result for one product or pouch doesn't carry over to another. After the order, service and support covers what happens next. For budget, the price guide explains how pricing works.

Quote

To request this configuration, send:

• Your product, its form and anything that affects flow or sealing
• Target net weight and tolerance
• Pouch type, width, length, material and closure, with samples if possible
• The speed you need and how you'll measure it
• Your supply voltage and frequency, and the space available

Ask the quotation to state the model and configuration version, what's included or optional, the conditions behind any performance statement, utilities, shipping and delivery terms, installation and training support, and the contracting entity. Start on WhatsApp, or return to the home page.
